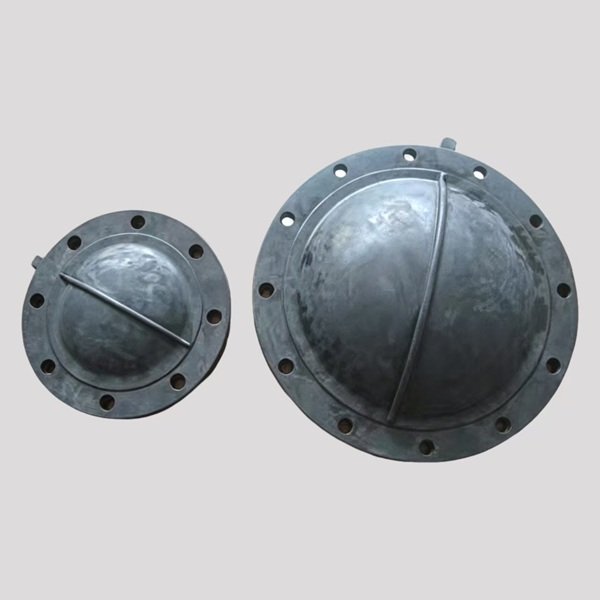

Item No. RD-006
We specialize in high-performance rubber diaphragms designed for precision, durability, and reliability across various industries. Our diaphragms provide superior sealing and pressure regulation, ensuring optimal performance in applications such as automotive, aerospace, industrial machinery, medical devices, and fluid control systems.
Manufactured using premium elastomers and advanced molding techniques, our diaphragms offer excellent resistance to chemicals, temperature extremes, and mechanical stress. Whether you require standard designs or custom-engineered solutions, we deliver products tailored to meet your exact specifications. Explore our range of rubber diaphragms and experience quality, innovation, and efficiency in every application.
Premium elastomer compounds – NBR, EPDM, silicone, FKM, neoprene, natural rubber
Fabric-reinforced options – polyester, nylon, or aramid fabric for high-pressure applications
Precision molding – tight tolerances for consistent, repeatable performance
Excellent flexibility & flex fatigue resistance – withstands millions of cycles
Superior sealing capability – reliable barrier against gases and liquids
Accurate pressure regulation – consistent response across wide pressure ranges
Chemical & temperature resistant – performs in aggressive media and extreme conditions
Custom-engineered designs – flat, convoluted, rolling, and dished profiles
Multiple material grades – food-grade, medical-grade, and industrial options
Full customization – size, shape, material, reinforcement, and hardness
Superior Sealing Performance – Provides a reliable, leak-tight barrier between media and mechanical components, ensuring safe and efficient operation in critical systems.
Accurate Pressure Regulation – Consistent flex response and precise molding deliver stable pressure control across a wide range of operating conditions.
Exceptional Flex Fatigue Resistance – Engineered to withstand millions of flex cycles without cracking, tearing, or losing performance, extending service life.
Excellent Chemical & Temperature Resistance – Available in a wide range of elastomers to suit aggressive chemicals, extreme temperatures, and harsh operating environments.
Automotive – fuel pressure regulators, brake systems, EGR valves, turbo wastegates
Aerospace – cabin pressure control, fuel systems, hydraulic actuators
Industrial machinery – pumps, compressors, valves, pneumatic actuators
Medical devices – ventilators, infusion pumps, blood pressure monitors, dialysis equipment
Fluid control systems – diaphragm valves, pressure switches, flow regulators
Water treatment – dosing pumps, filtration systems, chemical injection
Material
EPDM, NR, NBR, CR, FKM
Hardness
40-80ShA
Fabric
Polyester, nylon, curtain fabric, etc.
The general water pressure
0.4 MPa to 1.6 MPa
Standardized Pallets: Goods are stacked on heat-treated (ISPM 15) or plastic pallets, optimized for forklift handling. Rigid Corner Protectors: High-impact cardboard corner guards are applied to the full height of the stack. This prevents the straps from cutting into the rubber and maintains the vertical integrity of the pallet.
What materials are available for rubber diaphragms?
We offer NBR, EPDM, silicone, FKM (Viton®), neoprene, natural rubber, and custom compounds to suit specific chemical, temperature, and performance requirements.
What is the difference between fabric-reinforced and non-reinforced diaphragms?
Fabric-reinforced diaphragms incorporate a woven fabric layer for higher pressure resistance, longer stroke, and improved dimensional stability. Non-reinforced diaphragms are more flexible and suitable for lower-pressure applications.
What temperature range can rubber diaphragms withstand?
Depending on material: NBR (-30°C to +110°C), EPDM (-50°C to +150°C), Silicone (-60°C to +230°C), FKM (-20°C to +230°C).
How many cycles can a rubber diaphragm last?
With proper material selection and design, our diaphragms withstand millions of flex cycles. Cycle life depends on pressure, stroke length, temperature, and media.
Can you produce custom diaphragm profiles?
Absolutely. We manufacture flat, convoluted, rolling, dished, and fully custom profiles to your technical drawings or samples.
Are food-grade and medical-grade diaphragms available?
Yes. We offer FDA-compliant food-grade and medical-grade silicone and EPDM compounds for sanitary and healthcare applications.
What is the typical lead time for custom diaphragms?
Lead time depends on design complexity and quantity. Standard designs often ship within 7–15 working days. Custom orders typically 15–25 working days. Contact us for specific timelines.
