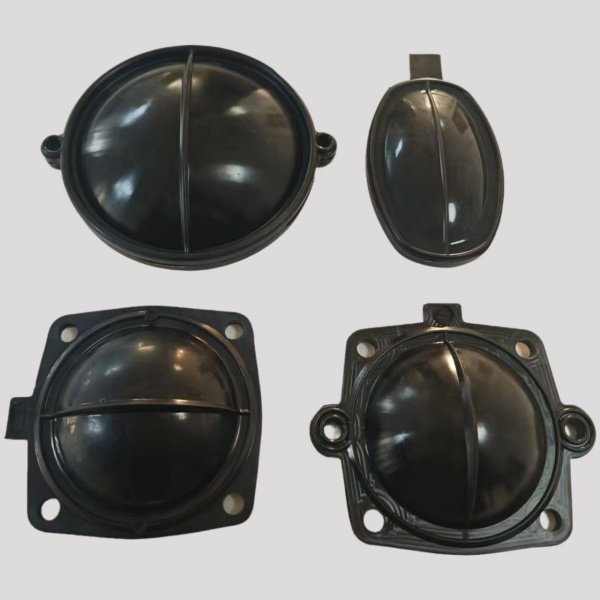

rubber diaphragm pump

A rubber diaphragm is essentially a flexible, circular barrier—usually made from high-strength elastomers—that acts as a seal between two chambers. Its primary job is to transmit motion or pressure from one side to the other while preventing liquids or gases from mixing.

Think of it like a drumhead that can move up and down without letting air through.

How It Works

Because rubber is elastic, the diaphragm can "flex" or displace when pressure is applied. This movement can be used to:

Create Suction: By pulling the diaphragm back, you increase volume and lower pressure (the principle behind a diaphragm pump).

Actuate Valves: By applying air pressure to one side, you can push the diaphragm to open or close a mechanical pathway.

Regulate Pressure: It can balance against a spring to keep a steady flow of gas or liquid.

Key Components & Materials

Depending on what it’s being used for, a diaphragm might be a simple sheet of rubber or a complex, "engineered" part:

Materials: Common choices include Nitrile (Buna-N) for oil resistance, EPDM for weather and water, or Viton for high temperatures and chemicals.

Fabric Reinforcement: Often, a layer of fabric (like nylon or polyester) is sandwiched inside the rubber to provide extra strength so it doesn't "balloon" or pop under high pressure.

Design Shapes:

• Flat: Simple and inexpensive, but has a shorter stroke (range of motion).




• Rolling: Designed with a fold that allows for a much longer, smoother stroke.




• Convoluted: Features "ribs" or folds to allow more flexibility without stretching the material too thin.

Common Real-World Uses

• Automotive: Found in brake boosters and fuel pumps.




• Medical: Used in ventilators and IV pumps where precision and hygiene are critical.




• Household: Your home’s water pressure tank and gas meter rely on them to function.
