Item No. RB-011

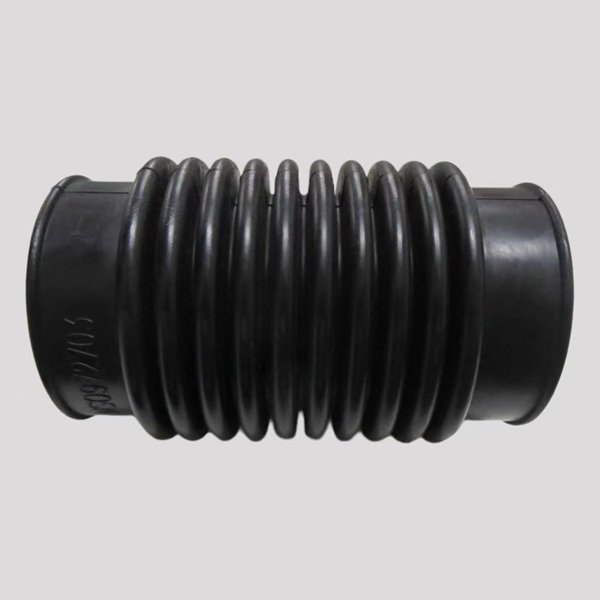

Rubber bellows are used as expansion joints for moving parts, providing flexible alignment and absorbing noise and vibration. Furthermore, they protect equipment and components from contaminants common in manufacturing and industrial environments, including dust, moisture, oil, chemicals, and ultraviolet radiation.
The corrugated structure design accommodates movement, provides sealing, and isolates external factors within various industrial and mechanical systems. The unique pleated design of the rubber bellow boot enables seamless expansion, compression, bending, and twisting whilst maintaining structural integrity. Consequently, it has become an indispensable component in applications requiring flexibility and protective functionality.
Corrugated / pleated design – allows expansion, compression, bending, and twisting
Multiple material options – EPDM, Silicone, FKM, NBR, CR, NR
Excellent flexibility – accommodates misalignment and dynamic movement
Superior sealing performance – isolates dust, moisture, oil, and chemicals
Vibration & noise absorption – dampens mechanical vibration and structure-borne noise
UV & ozone resistant – suitable for outdoor and exposed applications
Wide hardness range – 30 to 80 Shore A to suit different flexibility requirements
Structural integrity – maintains shape and performance under repeated flexing
Custom colors available – standard black, OEM colors upon request
Custom sizes – manufactured to customer specifications
Superior Flexibility & Movement Accommodation – The corrugated design enables seamless expansion, compression, bending, and twisting, accommodating misalignment and dynamic movement between connected components.
Comprehensive Contaminant Protection – Effectively seals out dust, moisture, oil, chemicals, and UV radiation, protecting internal components and extending equipment service life.
Excellent Vibration & Noise Absorption – Dampens mechanical vibration and structure-borne noise, contributing to quieter and smoother operation of industrial and mechanical systems.
Wide Material Selection – Available in EPDM, Silicone, FKM, NBR, CR, and NR to suit specific temperature, chemical, and environmental requirements.
Structural Integrity Under Repeated Flexing – High-quality rubber compounds and precision molding ensure the bellows maintain their shape and sealing performance even after millions of flex cycles.
Automotive – CV joint boots, steering rack boots, shock absorber dust covers, throttle body boots
Industrial machinery – linear actuator protection, robotic arm covers, guide rail bellows
Pneumatic & hydraulic systems – cylinder rod boots, valve stem seals, actuator protection
Marine & offshore – propeller shaft bellows, steering cable boots, deck equipment protection
Medical devices – flexible couplings, protective covers for precision instruments
Material
EPDM, SBR, NR. NBR, CR, Silicone, Viton
Hardness
30 ShA – 80 ShA.
Color
OEM colors according to RAL or Pantone No.
Size
OEM sizes according to customer’s requirement.
Logo
Customized logo according to customer’s need.
Standard: Goods are typically supplied in about 20-25kg/carton.
Standardized Pallets: Goods are stacked on heat-treated (ISPM 15) or plastic pallets, optimized for forklift handling. Rigid Corner Protectors: High-impact cardboard corner guards are applied to the full height of the stack. This prevents the straps from cutting into the rubber and maintains the vertical integrity of the pallet.
What materials are available for rubber bellows?
We offer EPDM, Silicone, FKM (Viton®), NBR, CR (Neoprene), and NR (Natural Rubber) to suit different temperature, chemical, and environmental requirements.
What is the typical hardness range?
Our bellows range from 30 to 80 Shore A. Lower hardness offers greater flexibility; higher hardness provides better structural rigidity.
What colors are available?
Standard color is black. OEM colors are available upon request to match your equipment or branding requirements.
Can you produce custom sizes?
Yes. We manufacture bellows to OEM sizes according to customer requirements – any diameter, length, corrugation profile, and wall thickness.
What movements can rubber bellows accommodate?
The corrugated design allows expansion, compression, bending, and twisting while maintaining structural integrity and sealing performance.
What temperature range can rubber bellows withstand?
Depending on material: EPDM (-50°C to +150°C), Silicone (-60°C to +230°C), FKM (-20°C to +230°C), NBR (-30°C to +110°C), CR (-35°C to +100°C), NR (-40°C to +80°C).
Are rubber bellows suitable for outdoor use?
Yes. EPDM, Silicone, and CR offer excellent UV, ozone, and weather resistance for outdoor applications.
What contaminants do rubber bellows protect against?
They protect against dust, moisture, oil, chemicals, and ultraviolet radiation, as well as other environmental contaminants common in industrial environments.
Do you offer custom corrugation profiles?
Absolutely. We manufacture bellows with custom corrugation patterns, wall thicknesses, and dimensions to meet your specific application requirements.
