Item No. SMP-006

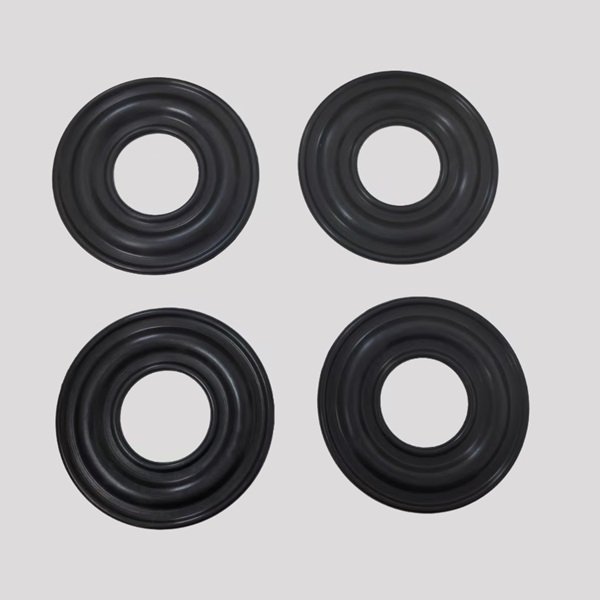

This corrugated Viton diaphragm seal is precision molded from premium FKM fluororubber. The multi-layer wave ring design delivers stable flexible reciprocating sealing, effectively isolating fluid, gas and pressure mediums. Custom dimensions, hardness and Viton grades are supported for OEM & ODM industrial sealing solutions.
Extreme temperature resistance: Working range -20℃ ~ +200℃, short-time peak up to 250℃
Outstanding chemical tolerance: Resist fuels, mineral oils, hydraulic fluids, strong acids & solvents
Low compression set, stable elasticity under long-term pressure cycling
Excellent aging & ozone resistance, long service life in harsh industrial environments
Tight sealing performance, no leakage under medium pressure
Multi-wave corrugated structure: Large flexible stroke, uniform stress distribution, avoid tearing & parting line flash pull
Integrated one-piece mold forming, smooth surface without burrs
Stable rebound performance after repeated reciprocating movement
Custom thickness, inner/outer diameter, wave layers as customer drawings
Material
Viton / FKM Fluoroelastomer (Viton A / GF grade optional)
Hardness
60~90 Shore A customizable
Color
Standard black, other colors available on request
Medium adaptability
Engine oil, gasoline, diesel, chemical solvent, industrial gas
Standard: Goods are typically supplied in about 20-25kg/carton.
Standardized Pallets: Goods are stacked on heat-treated (ISPM 15) or plastic pallets, optimized for forklift handling. Rigid Corner Protectors: High-impact cardboard corner guards are applied to the full height of the stack. This prevents the straps from cutting into the rubber and maintains the vertical integrity of the pallet.
Price terms
The price is based on FOB, CFR or CIF terms according to Incoterms 2000.
Delivery time
There is no guarantee for the delivery time. The guarantee is only for lead time.
Valid time
The valid time of molding or extrusion profile is 60 days unless there is big changes of raw compound and exchange rate.
Do you have a standard part?
We do not have a standard parts. All of our products are custom made to customer specifications, we may apply for the authorization from customer for the parts same to what you are looking for.
Will I need to invest tooling to produce my product?
If we do not have an existing tooling to meet your requirements, you will have to buy one.
Will you use the tooling for other customers?
No, you will have the 100% rights of the tooling. Please refer to our privacy policy and non disclosure agreement.
How can do I select the raw compound for my application?
With years of experience working with a variety of material, we can help select the material that will best suit your needs while keeping material costs in mind.
Do you use any international standards for the rubber products?
Yes, we use ASTM standards and RAM standards to define the quality of the rubber seal and rubber gaskets.
Can you supply different color material?
Yes, we can produce custom molded rubber and silicone rubber products in a variety of colors.
Package and shipment
All the goods will packed by carton box and loading to the pallet.
