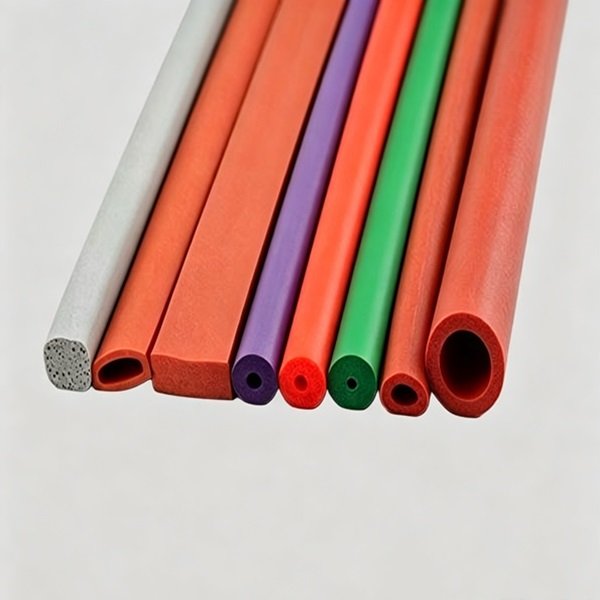

Sponge silicone profile

Sponge silicone profile

Item No. SP-022

Our sponge silicone profile is extruded from high‑quality foam silicone material. Featuring low density, excellent compressibility and quick rebound, this silicone foam profile delivers reliable sealing performance under compression.

Sponge silicone profile stands outstanding high & low temperature resistance, ozone and UV aging resistance, staying stable under harsh indoor and outdoor conditions. The material is non‑toxic, odor‑free and can be made food‑grade upon request.

Main functions : waterproof, dustproof, sound insulation, shock absorption, gap filling. Sponge silicone profile are suitable for industrial equipment, cabinet doors, automotive parts, lighting fixtures, household appliances and building sealing applications.

We support custom extrusion : various cross‑section shapes (square, rectangular, round, D‑shape, U‑shape, special profile), custom dimension, shore hardness, color and adhesive backing option. Samples are available.


(0) Reviews

  • OVERVIEW
  • SPECIFICATIONS
  • PACKAGE
  • FAQS

Key advantages of Sponge silicone profile :

1. Excellent Compressibility & Resilience : Porous sponge‑foam structure, high compression ratio and fast spring‑back performance. No permanent deformation under repeated squeezing, ensures stable sealing effect.

2. Wide Temperature Resistance : Works reliably from ‑40℃ to +200℃. Maintains softness and sealing property in both low‑temperature cold environment and high‑heat working conditions.

3. Superior Weather & Aging Resistance : Great resistance to ozone, UV light and atmospheric aging. Suitable for long‑term indoor and outdoor applications, not easy to harden, crack or yellow.

4. Multi‑functional Performance : Good dust‑proof, waterproof, shock‑absorbing, sound‑insulating and electrical insulation performance. Closed‑cell structure option reduces water absorption.

5. Material Safety Options : Odor‑free and non‑toxic. Food‑grade, flame‑retardant grades are available upon special requirements.

6. Flexible Customization : Support various extruded cross‑section profiles, custom density, hardness, color and length. Self‑adhesive backing can be added for quick installation.

7. Easy Processing & Installation : Can be cut to required length on site. Fit for doors, cabinets, equipment enclosures, automotive and household appliance sealing gaps.


Application of Sponge silicone profile

Sponge silicone profile is widely used for sealing, gap filling, shock absorption and noise reduction across multiple industries.

1. Electrical & Equipment Enclosures : Seal for electrical cabinets, control boxes and instrument housings. Provide dust‑proof, moisture‑proof and shock‑absorbing performance, protect internal components from dust and moisture intrusion.

2. Household Appliances : Ovens, steam ovens, disinfection cabinets, refrigerators and lighting fixtures. Withstands continuous high‑temperature working environment, ensures stable door sealing. Food‑grade version is available for food‑contact appliances.

3. Automotive Industry : Gap sealing for vehicle doors, trunk, lamp housings and interior parts. Achieve shock absorption, sound insulation, dust‑proof and weather‑resistant sealing.

4. Construction & Door‑Window : Industrial doors, equipment hatches and special‑purpose windows. Resists UV, ozone and outdoor aging, blocks wind, dust and water leakage.

5. Machinery & Industrial Equipment : Various mechanical covers, protective shields and compression sealing positions. Absorb vibration and buffer impact during equipment operation.

6. Other Custom Scenarios : Can be equipped with self‑adhesive backing for fast installation. Custom cross‑sections fit irregular gaps for special‑purpose fixtures and test equipment.


  • Materials

    Silicone

  • Hardness

    15-30 ShA

  • Color

    Black, Red, Green, Yellow, Blue, Brown, Gray, etc

  • Applications

    Automotive, Food and Medical Industry, Construction,Transportation.

Complete Pallet Preparation for rubber extrusions
Complete Pallet Preparation for rubber extrusions

Standardized Pallets: Goods are stacked on heat-treated (ISPM 15) or plastic pallets, optimized for forklift handling. Rigid Corner Protectors: High-impact cardboard corner guards are applied to the full height of the stack. This prevents the straps from cutting into the rubber and maintains the vertical integrity of the pallet.

Standard package for rubber extrusion
Standard package for rubber extrusion

Standard Rolls: Goods are typically supplied in 50m or 100m continuous rolls, precision-coiled to maintain the profile’s structural shape.

What is sponge silicone profile?

Sponge silicone profile, also known as foam silicone extruded seal strip, is porous silicone rubber made by continuous extrusion foaming process. It features soft texture, high compressibility, used for sealing, gap filling, shock absorption and noise reduction. Closed‑cell and semi‑open‑cell structures are optional.

What is the working temperature range for sponge silicone profile?

Standard grade performs from ‑40℃ to +200℃. Special formula can sustain short‑term peak temperature up to 220℃. It remains flexible without hardening or cracking within this range.

Closed‑cell or semi‑open‑cell, which one to choose?

Closed‑cell: low water absorption, better waterproof performance, ideal for outdoor and moisture‑prone environment.

Can you do custom cross‑section shapes for sponge silicone profile?

Yes. We support custom extruded profiles: D‑shape, U‑shape, square, rectangular, round and special irregular sections. Provide your drawing or sample for tooling development.

Is self‑adhesive backing available for sponge silicone profile?

Sure. 3M self‑adhesive tape can be laminated on one side for fast installation. Note that adhesive performance will drop under long‑term high‑temperature conditions.

Can sponge silicone profile be food‑grade or flame‑retardant?

Both options are available upon request. Food‑grade version complies with food contact requirements for home appliances; flame‑retardant grade fits electrical cabinet applications.

What about hardness and density for sponge silicone profile?

Density can be adjusted according to requirements; common Shore A hardness ranges from 15‑30 ShA. Lower density is softer with better compressibility; higher density brings better structural stability.

Do you provide samples for sponge silicone profile?

Yes, small free samples are available for quality testing, customers only need to bear the courier freight. Mass production lead time depends on tooling and order quantity.

Will it turn yellow or age quickly outdoors for sponge silicone profile?

Premium silicone foam material owns excellent UV and ozone resistance. It resists yellowing, cracking and aging for long‑time outdoor use, far better than EPDM or rubber foam.

What industries are commonly applied for sponge silicone profile?

Widely used for electrical cabinets, household appliances, automotive parts, construction doors & windows, machinery equipment, lighting fixtures and enclosures sealing.
