In the field of EPDM extrusion products, steel tape and steel wire reinforcement are two mainstream structural designs, widely used in automotive, construction, engineering machinery and many other industries. Different reinforcement methods determine the performance characteristics and application scenarios of products. To help customers select models accurately and improve product application experience, this article will detailedly analyze the core differences between EPDM extrusion strips with steel tape and those with steel wire, and focus on elaborating the unique advantages of the steel wire reinforced version.
I. Core Differences: Comprehensive Distinction from Structure to Performance
The essential difference between EPDM extrusion strips with steel tape and those with steel wire lies in the material and shape of the reinforced framework embedded in EPDM rubber, which further leads to significant differences in their performance, process and application scenarios. The details are as follows:
(1) Differences in Reinforced Framework and Composite Method

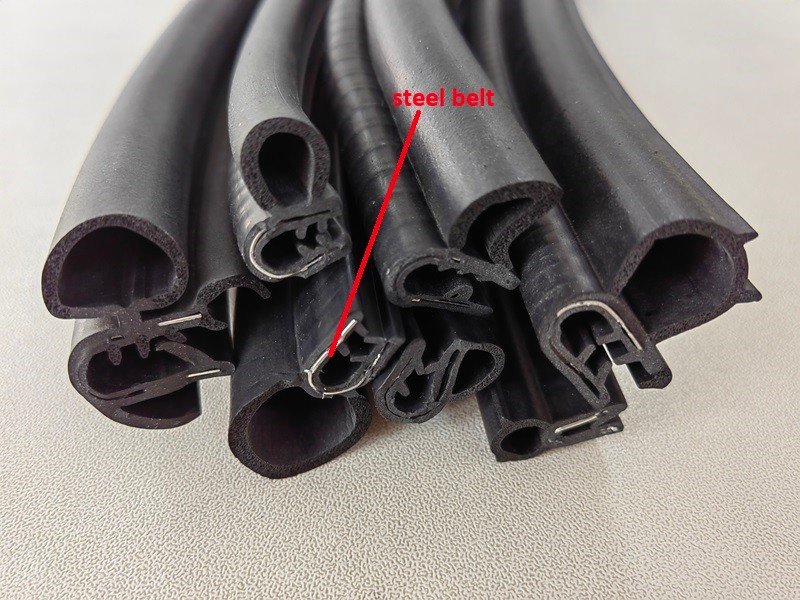

1. EPDM extrusion strips with steel tape: Thin steel plates or galvanized steel coils (usually 0.3-0.8mm thick) are used as the reinforced framework, presenting a continuous sheet-like and strip-like structure. During the production process, the steel tape is bonded with EPDM rubber through co-extrusion technology, and the rubber uniformly wraps one or both sides of the steel tape to form a "rubber + steel tape" composite structure, focusing on shaping performance.
2. EPDM extrusion strips with steel wire: Single or multi-strand steel wires (0.5-3mm in diameter) are used as the reinforced framework, which can be in the form of steel wire braiding or multi-layer winding according to requirements. During production, the steel wires are embedded into the EPDM rubber, and firm bonding between steel wires and rubber is achieved through vulcanization technology, forming a three-dimensional structure of "inner rubber + steel wire reinforcement layer + outer rubber", focusing on the balance between strength and flexibility.
(2) Comparison of Key Performances
The performance differences between the two products directly determine their application boundaries. The following is a comparison of core performances to help customers quickly distinguish and select models:
Tensile strength: EPDM extrusion strips with steel tape have medium tensile strength, which can only meet conventional static tensile requirements; EPDM extrusion strips with steel wire have extremely high tensile strength (the strength of the steel wire itself can reach 1500-2500MPa), which can bear high-strength tensile loads and are not easy to break.
Compression and explosion resistance: The steel tape version can only bear low to medium pressure. The thin steel sheet structure cannot resist high-pressure impact and is prone to deformation; the steel wire version (especially the braided and wound type) can bear 10-40MPa high pressure, with outstanding explosion resistance and internal pressure resistance, and is not easy to have pipe explosion or collapse.
Bending flexibility: The steel tape version can achieve basic winding and bending, with strong shape retention, but repeated bending is prone to steel sheet fatigue and delamination; the steel wire version can achieve small-radius bending, and repeated bending and dynamic swinging will not fail, with excellent flexibility and fatigue resistance.
Process and cost: The co-extrusion process of the steel tape version is simple, the production difficulty is low, and the overall cost is relatively low; the steel wire version requires additional processes such as steel wire braiding, positioning and high-temperature vulcanization, with high process complexity and relatively high cost.
(3) Differences in Application Scenarios
1. EPDM extrusion strips with steel tape: Focus on "shaping + sealing", suitable for static and low-pressure scenarios. The core applications include automotive door and window/skylight seals, building door and window seals, equipment cabinet gaskets, low-pressure air ducts, decorative shaping strips, etc. With good shape retention, it achieves stable sealing and positioning effects.
2. EPDM extrusion strips with steel wire: Focus on "high pressure + dynamic + high strength", suitable for harsh working conditions. The core applications include high-pressure hydraulic oil pipes, steam pipes, chemical conveying hoses, engineering machinery seals, vibration pipeline compensators, industrial high-pressure seals, etc., which can adapt to complex environments such as high-frequency vibration, pulse pressure and alternating high and low temperatures.
II. Core Advantages: The Unique Value of EPDM Extrusion Strips with Steel Wire
Compared with the steel tape reinforced version, EPDM extrusion strips with steel wire show irreplaceable advantages in high-strength and high-reliability scenarios due to their structural characteristics. The details are as follows:
1. Ultra-high Strength to Resist Extreme Loads
The tensile and compressive properties of steel wire are far superior to those of steel tape, which can effectively resist extreme loads such as high pressure, high tension and strong impact, avoid problems such as fracture, deformation and pipe explosion of products during use, greatly improve the durability and safety of products, and is especially suitable for core scenarios such as high-pressure transportation and heavy machinery.
2. Outstanding Flexibility to Adapt to Dynamic Working Conditions
Steel wires are distributed in a linear and net-like manner. Combined with EPDM rubber, they can achieve small-radius bending and repeated swinging without fracture or delamination. Compared with the rigid limitation of the steel tape version, the steel wire version is more suitable for scenarios such as dynamic sealing and movable components, such as movable pipelines of engineering machinery and flexible seals of automobiles, to meet complex movement requirements.
3. Fatigue Resistance and Aging Resistance to Extend Service Life
The steel wire reinforced structure has excellent pulse pressure resistance and vibration resistance, which can adapt to harsh working conditions such as long-term high-frequency vibration and thermal expansion and contraction, and is not easy to suffer fatigue damage; at the same time, the steel wire is firmly bonded with EPDM rubber through vulcanization technology, with large contact area and extremely low delamination risk, effectively extending the service life of products and reducing the replacement and maintenance costs of customers.
4. Dimensional Stability to Adapt to Complex Scenarios
The steel wire has extremely strong radial support force. Whether in high-pressure internal pressure or negative pressure environment, it can maintain the stable cross-sectional shape of the product, without pipe explosion or collapse, and has high dimensional accuracy. At the same time, its excellent corrosion resistance and high temperature resistance can adapt to complex industrial scenarios such as chemical industry and high-temperature steam, expanding the application boundary of products.
5. Reliable Structure to Adapt to High-end Requirements
The three-dimensional structure of steel wire braiding and winding forms a synergistic effect with EPDM rubber, which not only improves the mechanical properties of products, but also enhances the sealing reliability of products. It can meet the scenarios with strict requirements on sealing and strength such as high-end equipment and precision machinery, helping customers improve product competitiveness.
III. Selection Suggestions
Combined with the core differences and advantages of the two products, we put forward the following selection suggestions to help customers accurately match their needs:
1. If your demand is static sealing and shaping positioning, and you are sensitive to cost, without the need to bear high pressure and repeated bending, choosing EPDM extrusion strips with steel tape can meet your needs;
2. If your demand is high pressure, dynamic working conditions, high-strength loads, or you need to adapt to complex and harsh environments and pursue long service life and high reliability of products, you should first choose EPDM extrusion strips with steel wire.
As an enterprise focusing on the R&D and production of EPDM extrusion products, we have always been customer-oriented. We can provide customized steel tape and steel wire reinforced EPDM extrusion strip solutions according to different industries and scenarios, helping customers improve product quality and market competitiveness. For further understanding of product details or selection consultation, please feel free to contact us.
