Item No. RGS-015

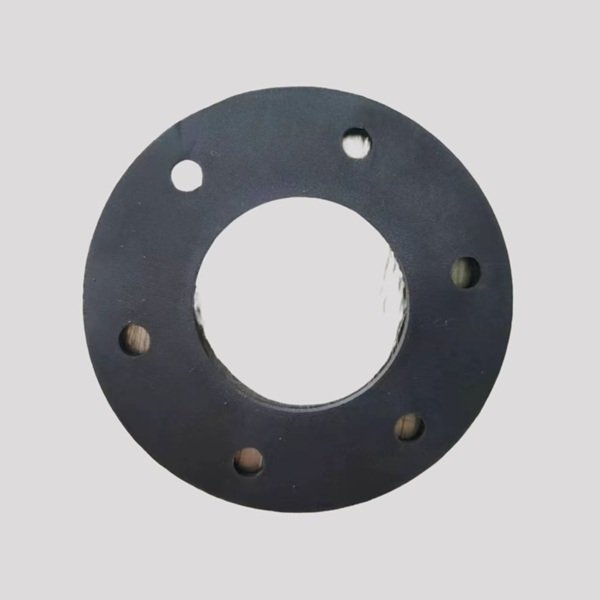

Viton full-face flange gaskets are premium sealing solutions designed for pipe, valve, and pump flange connections in the most demanding industrial environments. Unlike standard elastomers, Viton® fluoro-rubber delivers exceptional performance where extreme heat, aggressive chemicals, and high-pressure conditions are present.
Each gasket features pre-drilled mounting holes that align perfectly with standard flange bolt patterns,
eliminating on-site cutting or punching and enabling fast, error-free installation. These gaskets are the preferred choice for industries ranging from petrochemical refining to pharmaceutical processing, where sealing failure is not an option.
Premium Viton material – exceptional heat, oil, and chemical resistance
Full-face design – maximum sealing contact and even load distribution
Pre-drilled bolt holes – ready to install, no secondary processing needed
Temperature range – -20°C to +200°C (intermittent +250°C)
Excellent compression set resistance – maintains sealing force over time
Anti-aging & weather resistance – resists ozone, UV, and oxygen degradation
Customizable – non-standard sizes, thicknesses, and FKM grades available
Reliable Leak Protection – Viton®'s high elasticity compensates for minor flange surface irregularities, blocking liquid and gas leakages effectively.
Superior Chemical & Heat Tolerance – Outperforms NBR, EPDM, and Neoprene in oils, fuels, acids, and high-temperature environments.
Reduced Maintenance & Downtime – Long service life and pre-drilled holes cut installation time and lower overall maintenance costs.
Petrochemical & Refining: Sealing pipelines carrying fuels, solvents, and process chemicals.
Pharmaceutical & Food Processing: (FDA-compliant grades available) for sanitary piping systems.
Power Generation: High-temperature steam and cooling water systems.
Automotive & Aerospace: Test stands, fuel lines, and hydraulic systems.
Chemical Processing Plants: Acid transfer lines, aggressive media handling.
Oil & Gas Exploration: Downhole equipment and offshore platform piping.
Material
NR, EPDM, NBR, CR, SBR, Silicone, FKM.
Hardness
30 ShA – 90 ShA
Color
OEM colors according to RAL or Pantone No.
Size
OEM sizes according to customer’s requirement.
Color
typically Brown or Black
Standard: Goods are typically supplied in about 20-25kg/carton.
Standardized Pallets: Goods are stacked on heat-treated (ISPM 15) or plastic pallets, optimized for forklift handling. Rigid Corner Protectors: High-impact cardboard corner guards are applied to the full height of the stack. This prevents the straps from cutting into the rubber and maintains the vertical integrity of the pallet.
What temperatures can Viton gaskets handle?
Continuous service from -20°C to +200°C, with intermittent peaks up to +250°C.
Do they fit standard flanges?
Yes. Pre-drilled to ANSI, DIN, BS, and JIS standards. Custom patterns available.
Can Viton resist oils and chemicals?
Yes. Excellent resistance to oils, fuels, mineral acids, and aromatic hydrocarbons.
Do you offer custom sizes?
Yes. Send us your drawings or samples – we produce to your exact specifications.
How does Viton compare to NBR or EPDM?
Viton offers far superior heat, oil, and chemical resistance, making it the better choice for demanding sealing applications.
What is your lead time?
A: Standard sizes often in stock. Custom orders typically 5–15 working days.
